High-pressure Voltage Sensor
The high-pressure voltage sensor /supporting insulator aggregate unit is a new type of high-pressure transducer patented product developed by our company. This product has 2 functions, namely the high-pressure voltage sensor and the supporting insulator, which is suitable for measuring the voltage with any frequency and waveform under the voltage level of 12kV or less. It is broadly used in the fields like all kinds of high-tension switch boards, high-voltage inverters, STATCOM（SVG） and light DC transmission converters, etc. It has outstanding characters like mature, safe, reliable, compact and practical, etc.
-
Suitable for measuring high voltage with any waveform (including DC and alternating voltage of any frequency and waveform);
-
Has 2 functions, the high-pressure voltage sensor and supporting insulator;
-
A instantaneous voltage signal of -5V～+5V can be output through use of the CTR-T02 voltage transmitter product of CenteRole (Dalian) Co., Ltd., and it can directly drive all kinds of loads under 30mA;
-
A current signal of 4～20mA can be output through using the CTR-T01 voltage transmitter product of CenteRole (Dalian) Co., Ltd., and it can directly drive the voltmeter of this kind or all kinds of other loads under 25mA.
-
Completely sealed, has good dust prevention, dampproof , quakeproof and anti-impact functions.
-
Mature, safe, reliable, compact and practical.

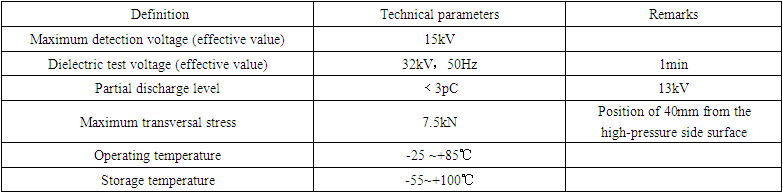

Maximum Rated Values

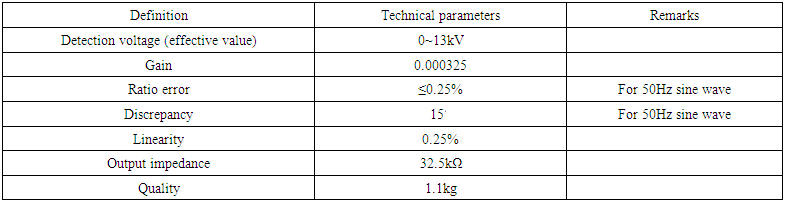

Main technical parameters
The high-pressure voltage sensor consists of 2 parts, the main body and the attached cable assembly, as shown in the above picture of product .The attached cable assembly consists 2parts ,the transition short cable and the accouplement long cable is inserted in the transition cable.

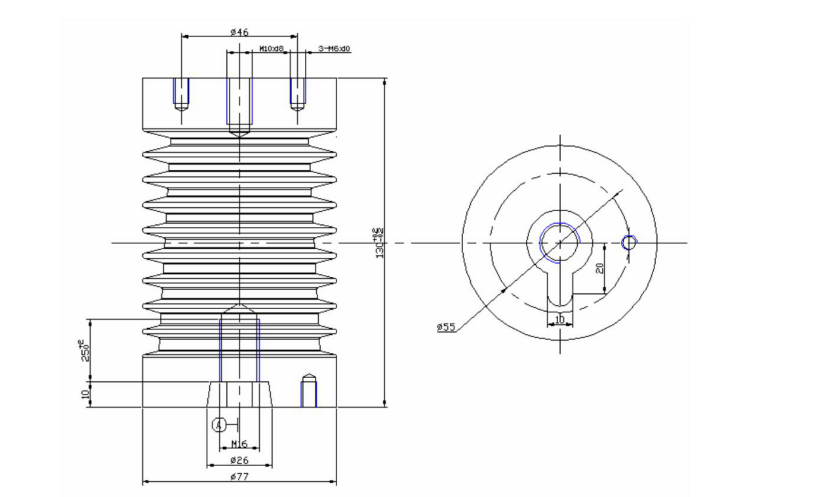

The outline dimension of the main body is shown as follows:

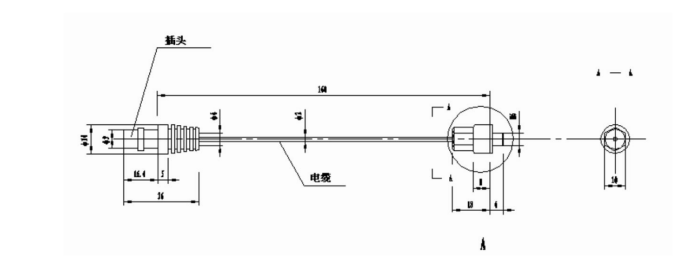

The outline dimension of transition short cable of the attached cable assembly is shown as follows:

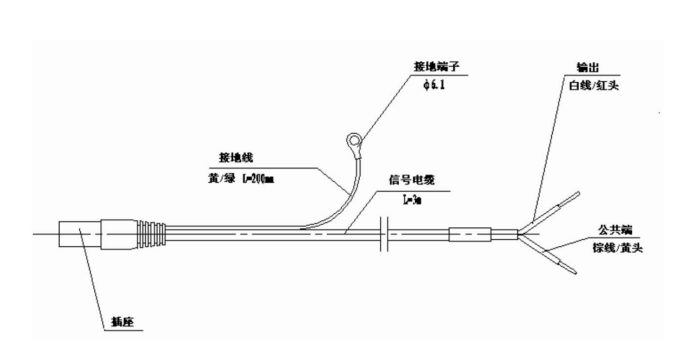

The outline dimension of accouplement long cable of the attached cable assembly is shown as follows:
